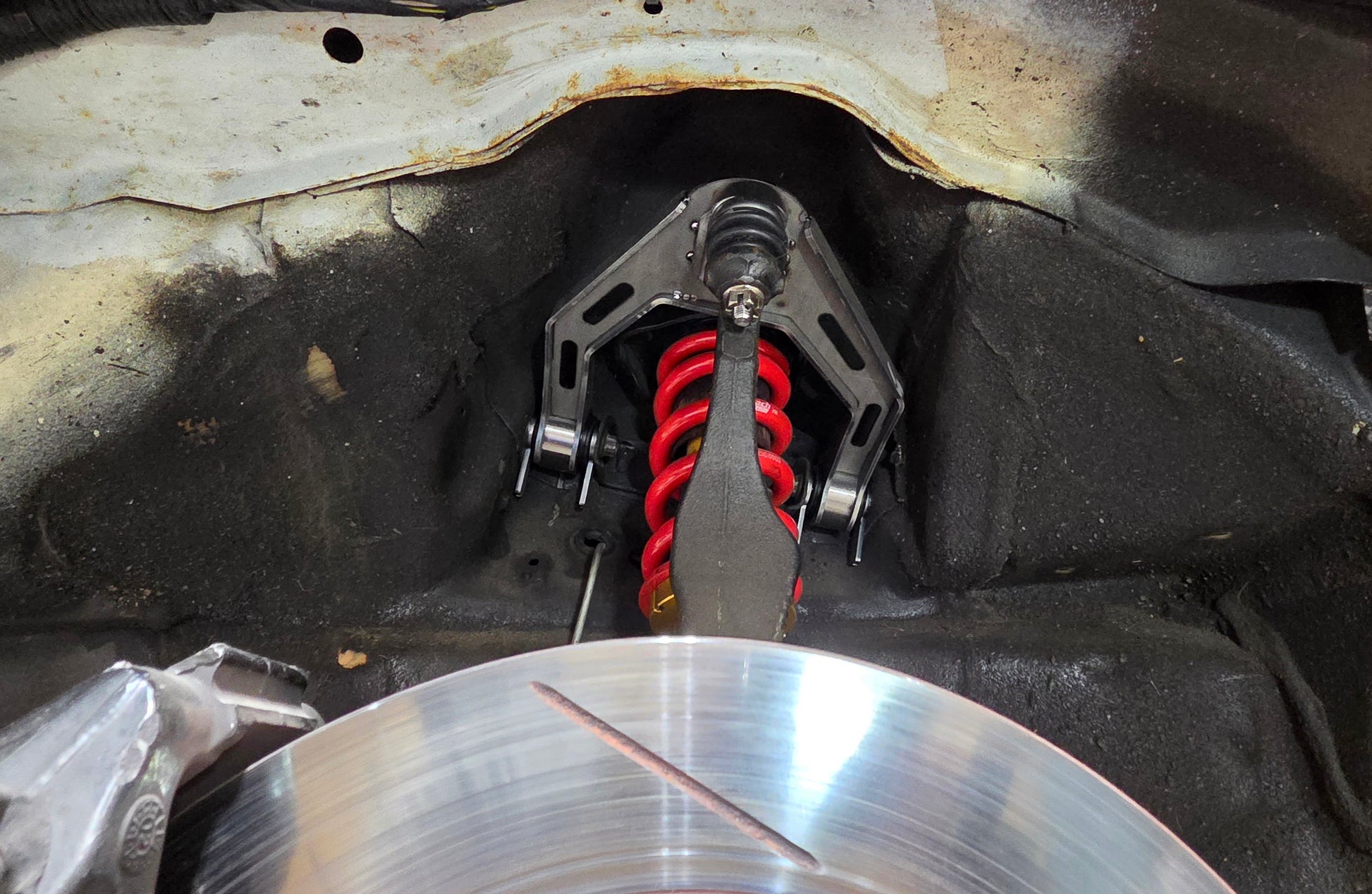

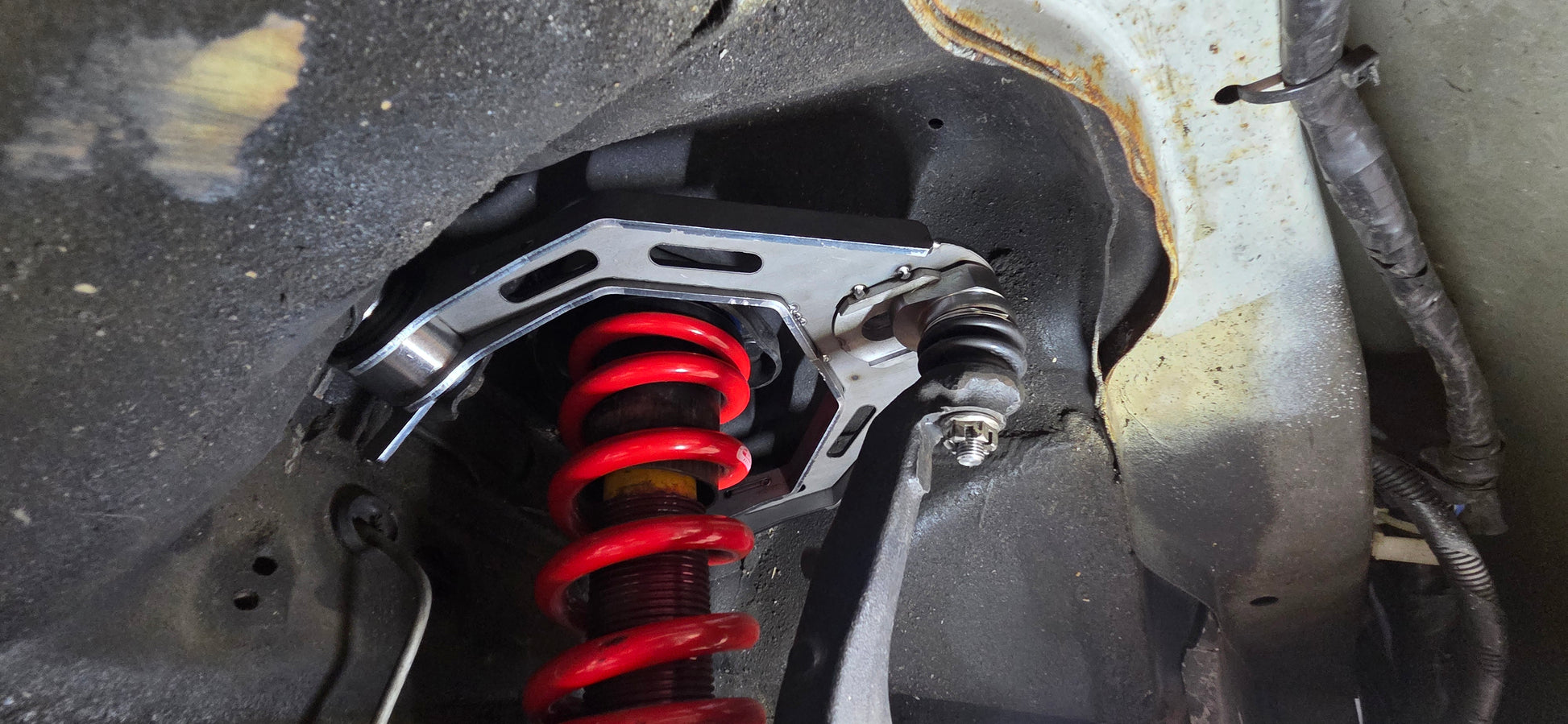

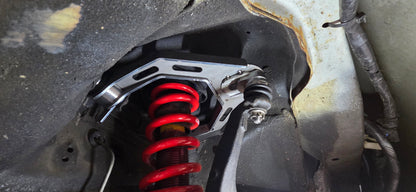

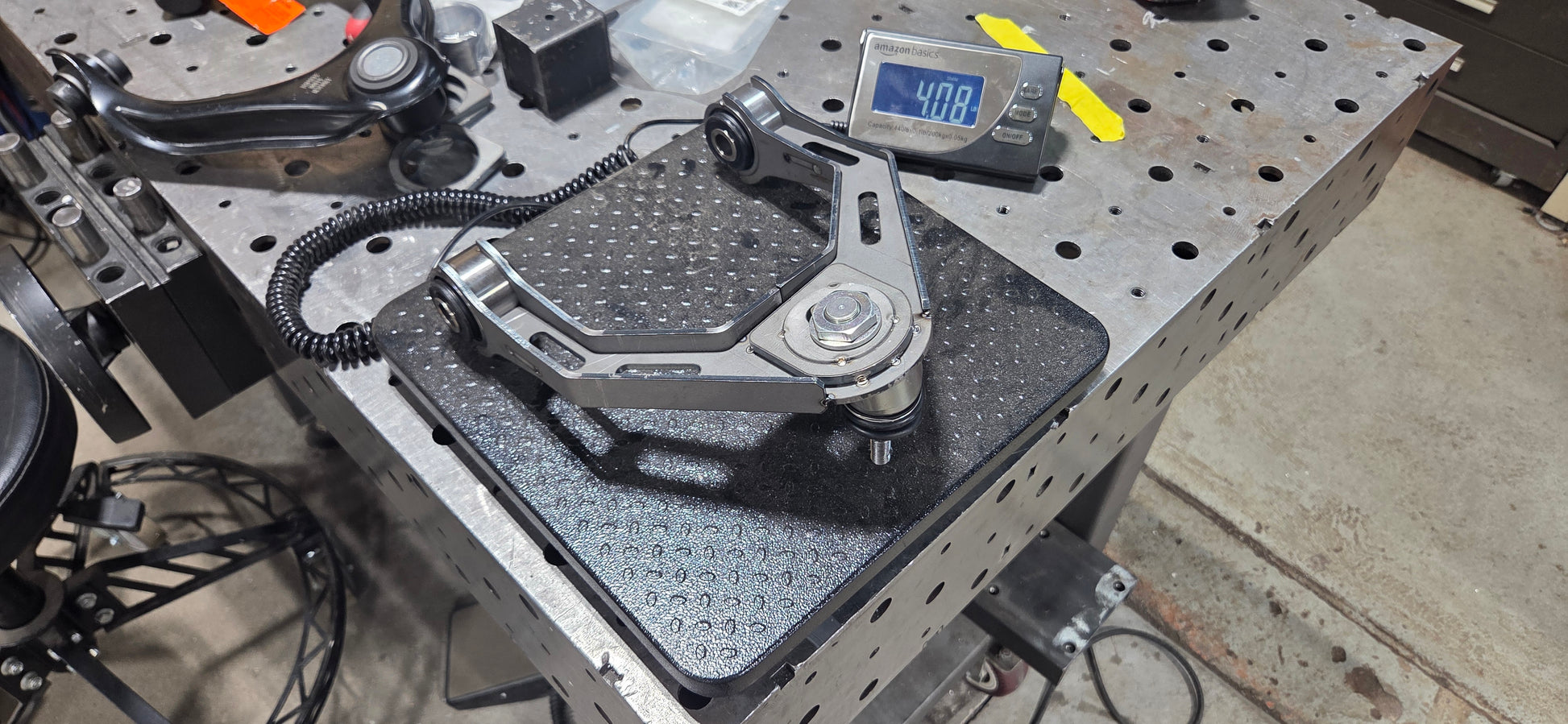

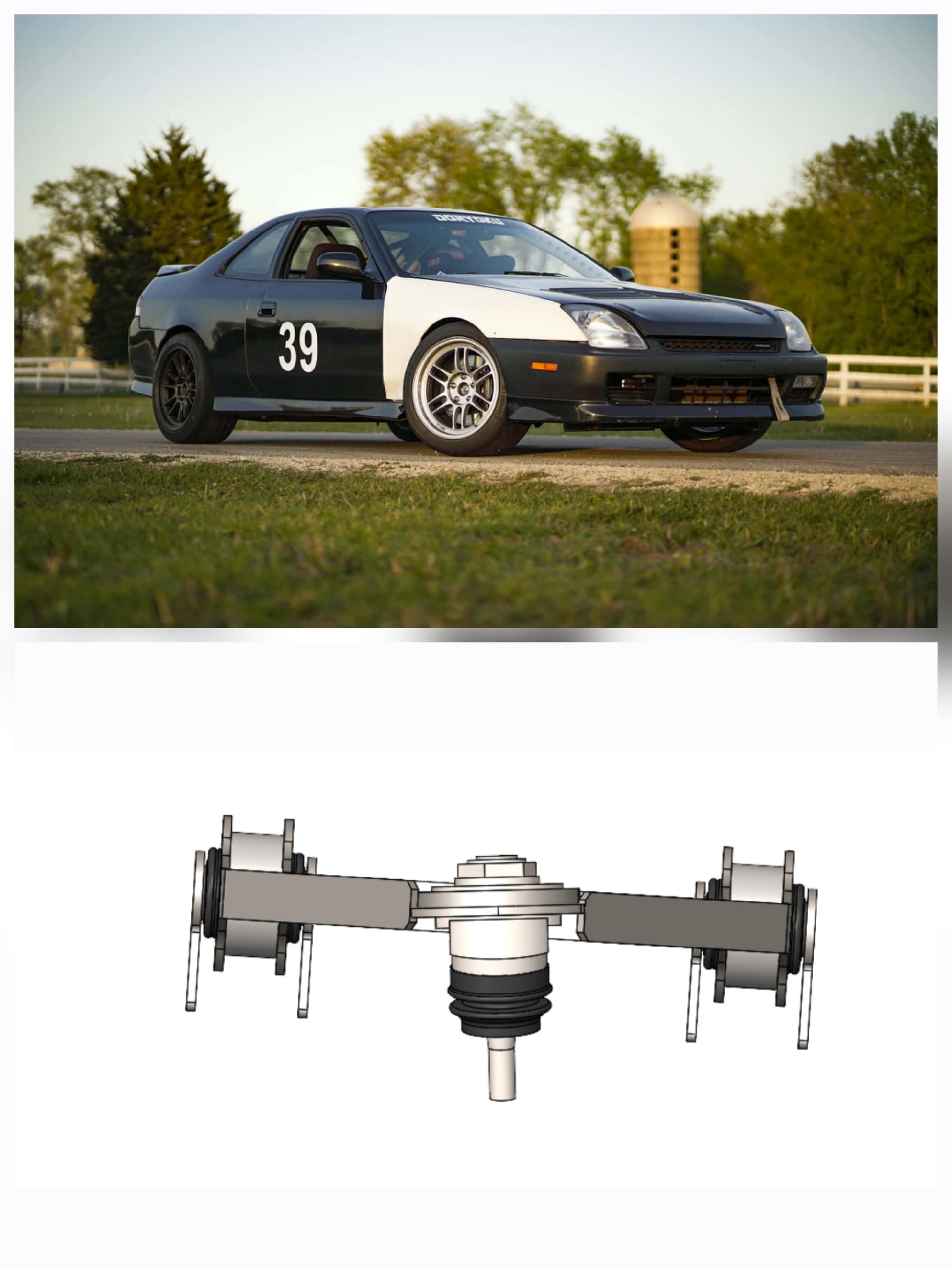

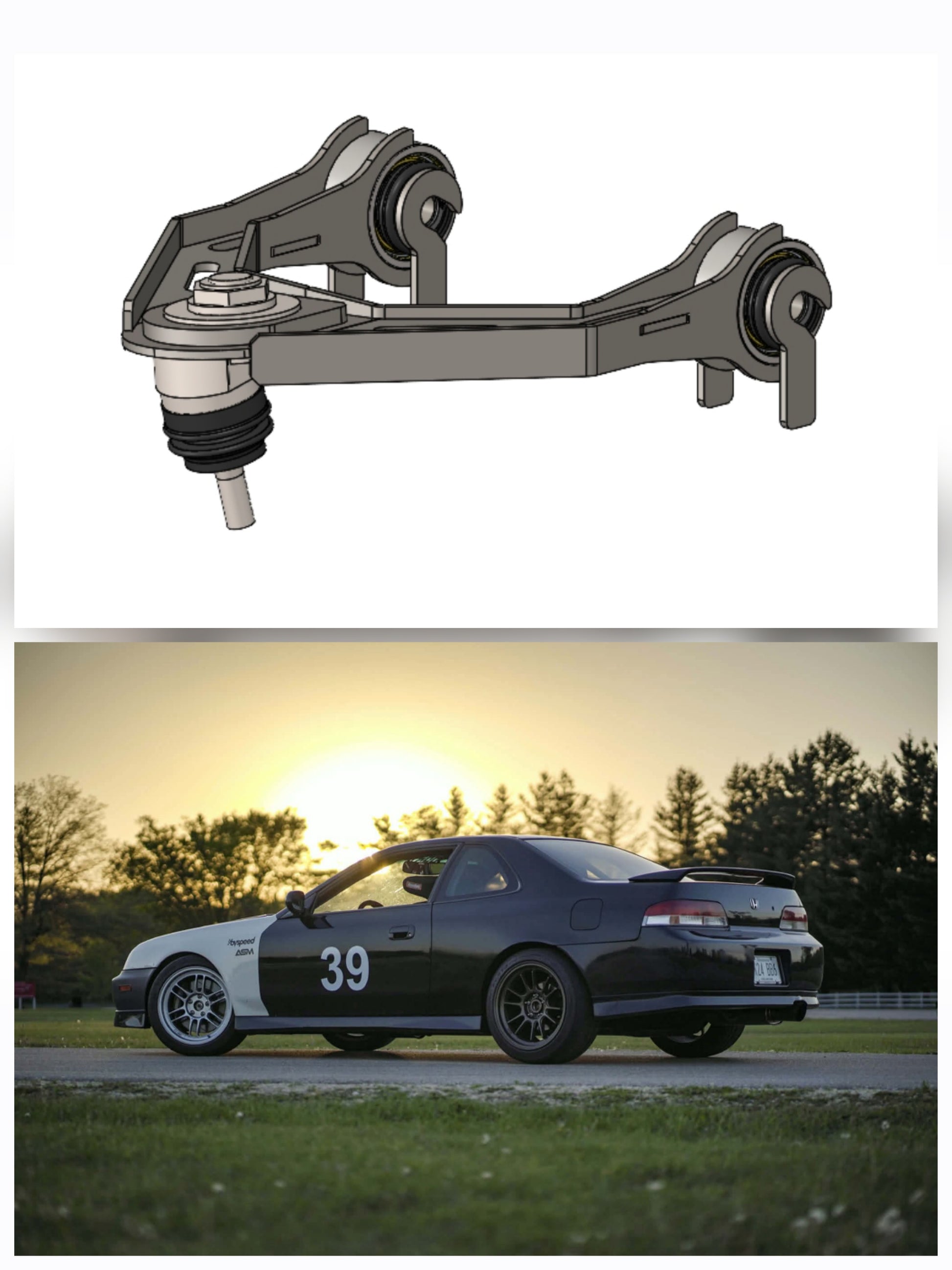

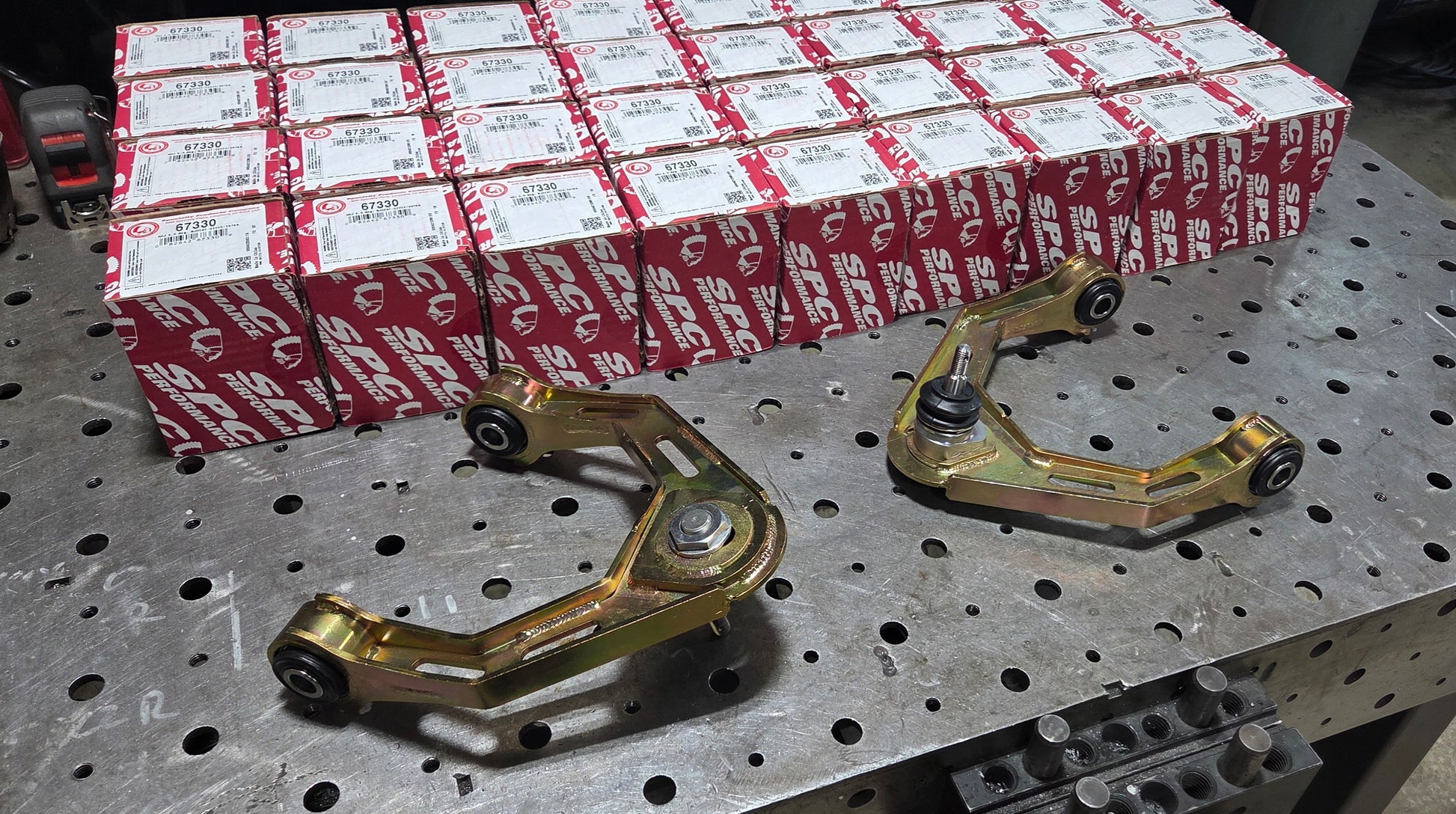

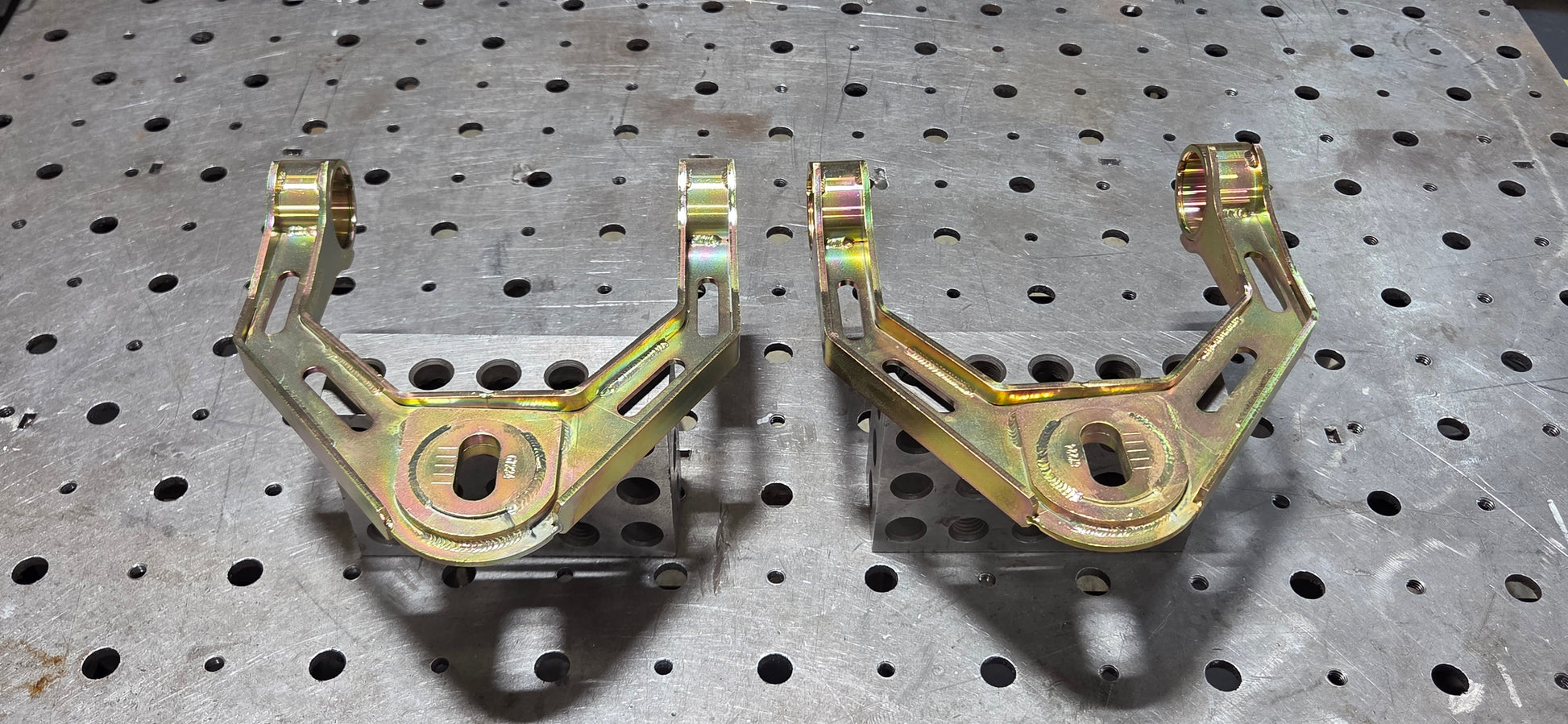

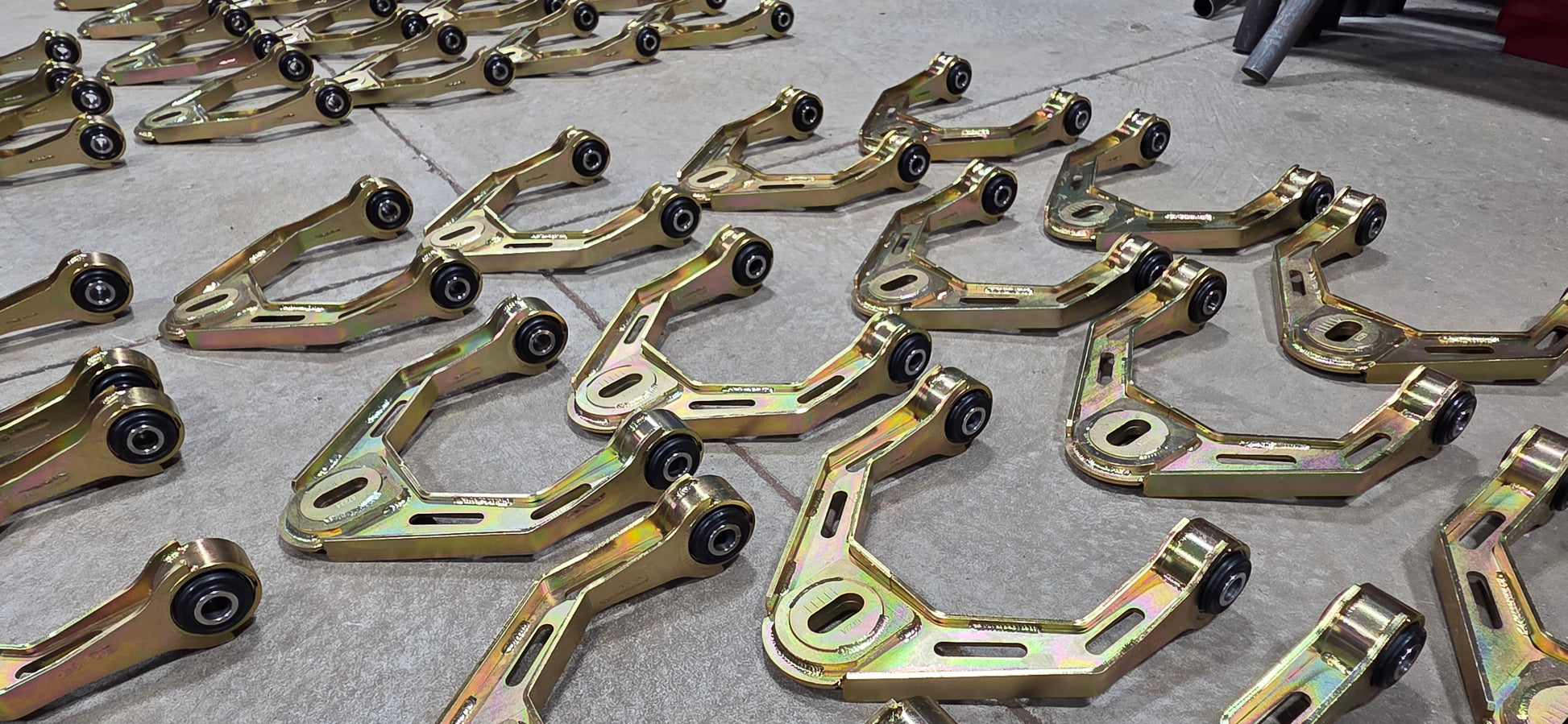

BB6 Prelude Front Upper Control Arm
Regular price
$785.00
Regular price
Sale price
$785.00
Unit price
per
For internaitonal shipping email info@doryokumfg.com.
Shipping calculated at checkout.
Shipping calculated at checkout.
Description
Description

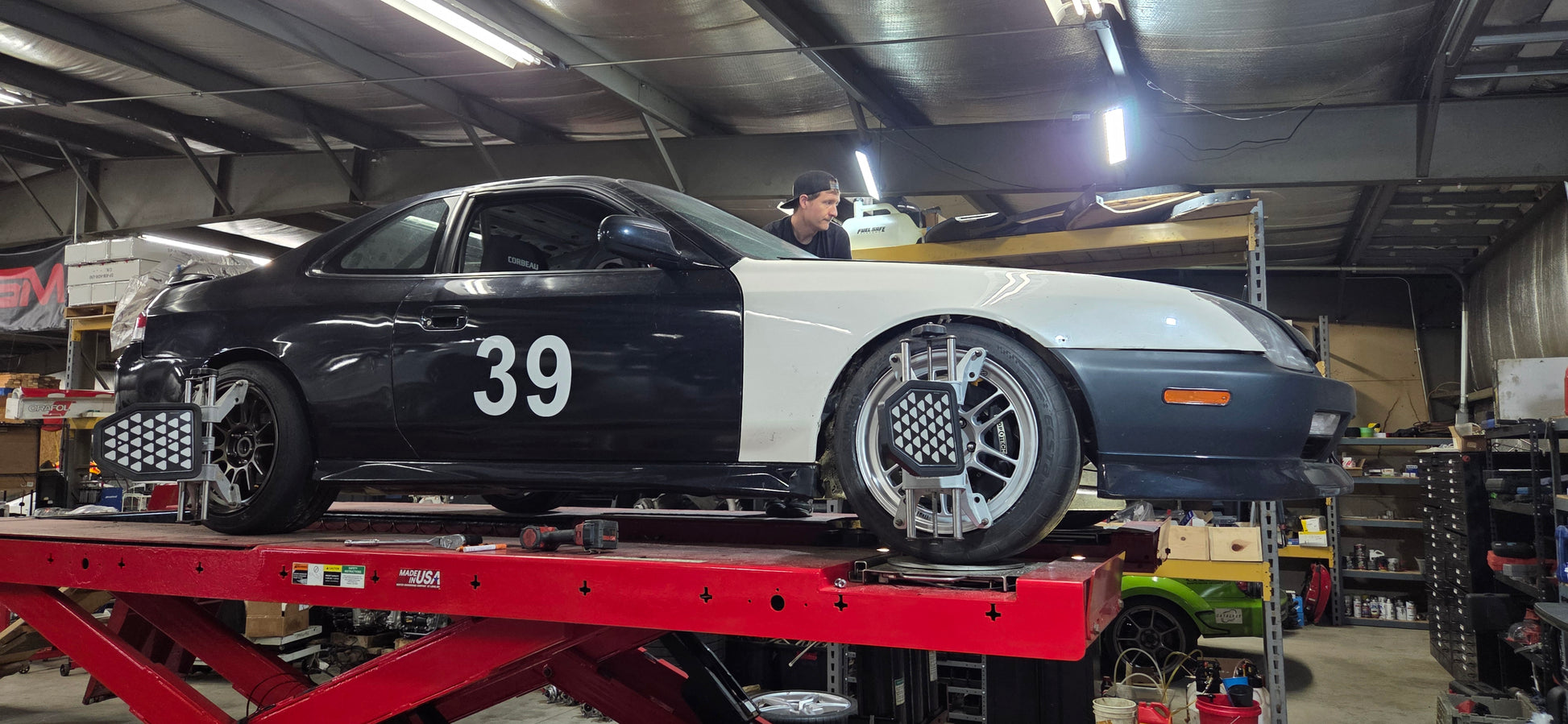

We developed the TSX UCA on our endurance race car for the past year and proven the design works. Read testing/development journey on the bottom tab/link.
BB6 arms general specs (subject to revision):
☆ Drag or Track arm option
☆ Sealed pillow ball bushings
☆ Built-in -2.5 camber
☆ Built-in +4 caster
☆ Low profile balljoint for adjustable camber -2.5 to -5
☆ More shocktower clearance over square plate ball joint design
☆ Steel spacers for adjustable caster +5.5 to +6.5
Note: Additional caster adjustment can be achieved by adjusting traction bar radius arm IF you have spherical bearing on the LCA
☆ 1020 steel construction
☆ Zinc Chromate plating
☆ TIG weld by AWS D17 aerospace certified welder
☆ Drag UCA option will have built-in +1 camber so that adjustable balljoint will have range of +1 to -2 camber based off ride height.
Caster values will be +5.5 to +6.5. This will help with high speed stability & self centering steering.
☆ These will NOT work on SH models
